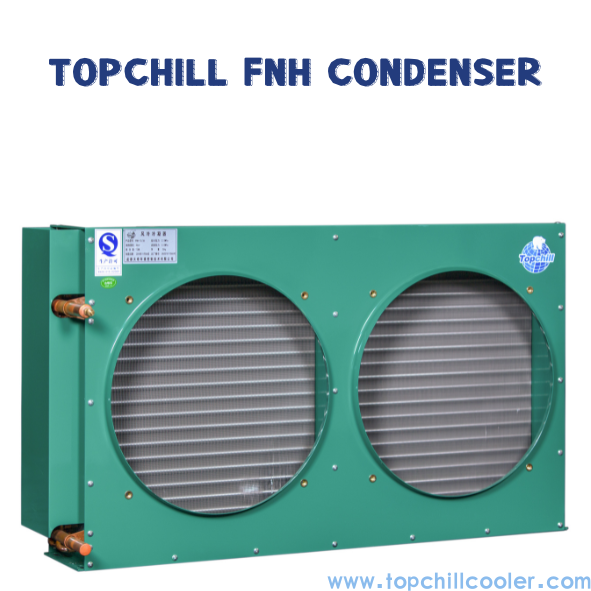

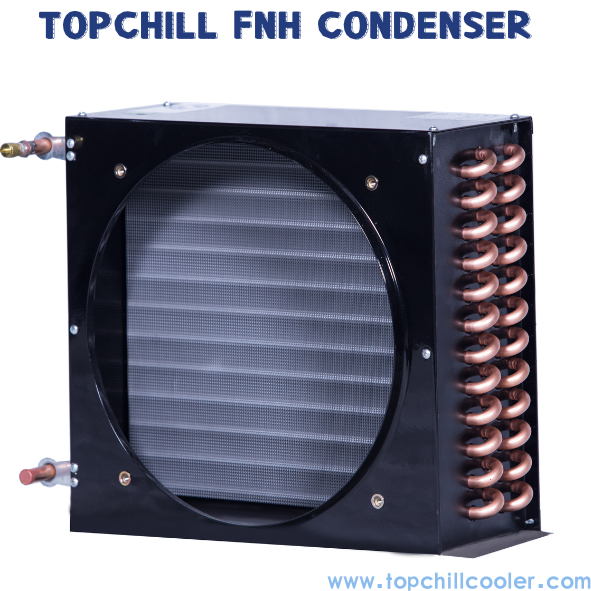

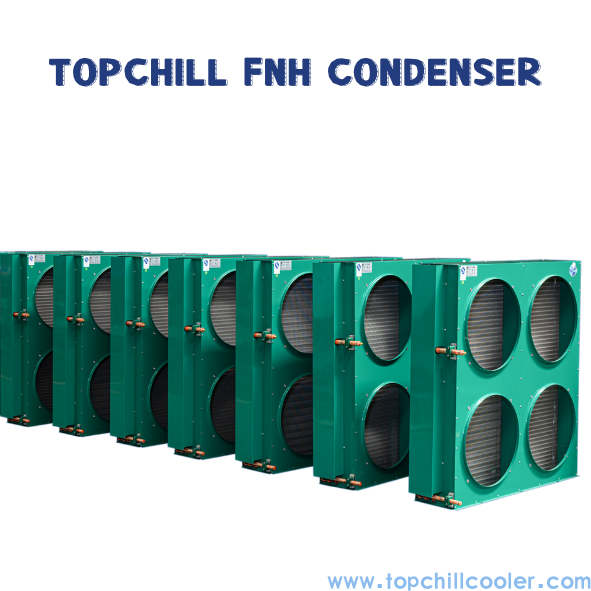

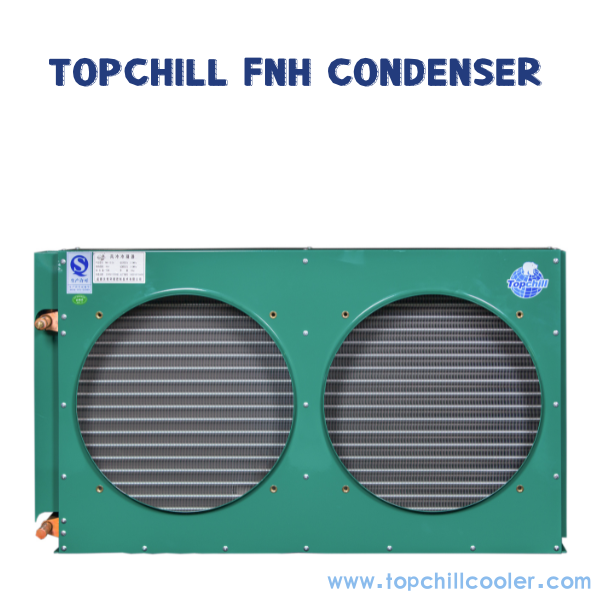

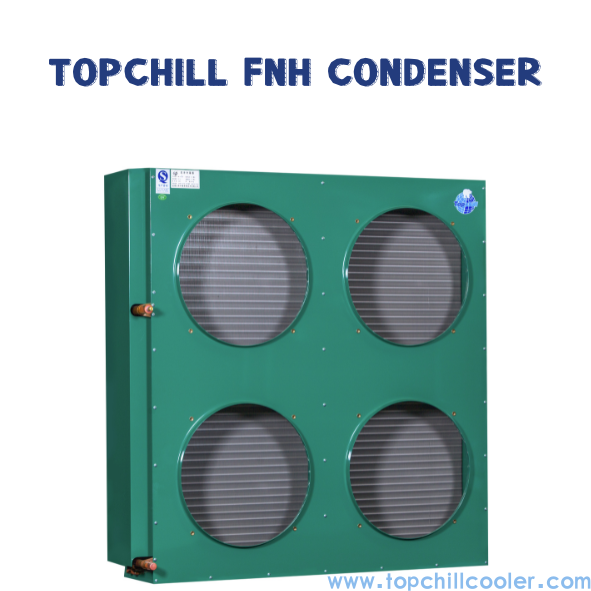

型号规格 | 主要参数Main paramtetes | 风扇电机参数 Parameters of fan motor | 接口管径Caliber of connecting tube | 类别category | ||||||
Model Specifications | 排热量∆t=15k(kw) | 冷凝面积condensation area | 风扇 | 数量 | 总风量 | 功率 | 电压 | 进口 | 出口 | |
heat exhaust | 直径 | Quanlity | Total air volume | Power | Voltage | Inlet | Outlet | |||
Diameter of fan | ||||||||||
W | ㎡ | Φmm | N | m³/h | W | V | Φmm | Φmm | 本厂可为用户特殊设计加工非标产品 | |
FNH-0.7/2 | 710 | 2 | 200 | 1 | 430 | 33 | 220 | 10 | 10 | This company can design and produce special non-standard products for customers |
FNH-1.2/3.4 | 1217 | 3.4 | 200 | 1 | 430 | 33 | 220 | 10 | 10 | |
FNH-1.4/4.0 | 1440 | 4 | 200 | 1 | 430 | 33 | 220 | 10 | 10 | |
FNH-1.6/4.4 | 1566 | 4.4 | 250 | 1 | 910 | 60 | 220 | 10 | 10 | |
FNH-1.9/5.2 | 1856 | 5.2 | 300 | 1 | 1530 | 75 | 220 | 10 | 10 | |
FNH-2.9/8 | 2864 | 8 | 300 | 1 | 1530 | 75 | 220 | 10 | 12 | |
FNH-3.0/8.4 | 3007 | 8.4 | 300 | 1 | 1530 | 75 | 220 | 10 | 12 | |
FNH-3.8/10.6 | 3816 | 1036 | 300 | 1 | 1530 | 75 | 220 | 10 | 12 | |
FNH-3.6/10 | 3550 | 10 | 350 | 1 | 1800 | 90 | 380 | 16 | 12 | |
FNH-4.3/12 | 4296 | 12 | 350 | 1 | 1800 | 120 | 380 | 16 | 12 | |
FNH-5.4/15 | 5355 | 15 | 350 | 1 | 1800 | 120 | 380 | 16 | 12 | |
FNH-6.4/18 | 6408 | 18 | 400 | 1 | 3000 | 120 | 380 | 16 | 12 | |
FNH-7.9/22A | 7876 | 22 | 400 | 1 | 3000 | 120 | 380 | 16 | 12 | |
FNH-10/27 | 9610 | 27 | 400 | 1 | 3000 | 120 | 380 | 19 | 16 | |
FNH-7.9/22B | 7876 | 22 | 350 | 2 | 3600 | 2X120 | 380 | 16 | 12 | |
FNH-10/28 | 9968 | 28 | 350 | 2 | 3600 | 2X120 | 380 | 19 | 14 | |
FNH-12/33 | 11880 | 33 | 400 | 2 | 6000 | 2X120 | 380 | 19 | 14 | |
FNH-15/42 | 15036 | 42 | 400 | 2 | 6000 | 2X120 | 380 | 19 | 16 | |
FNH-19/52 | 18668 | 52 | 400 | 2 | 6000 | 2X120 | 380 | 19 | 16 | |
FNH-21/60 | 21360 | 60 | 450 | 2 | 9000 | 2X180 | 380 | 22 | 19 | |
FNH-25/70 | 24640 | 70 | 450 | 2 | 9000 | 2X180 | 380 | 25 | 19 | |
FNH-28/80 | 28240 | 80 | 450 | 2 | 9000 | 2X180 | 380 | 25 | 19 | |
FNH-35/100 | 35400 | 100 | 500 | 2 | 13140 | 2X450 | 380 | 25 | 19 | |
FNH-39/110 | 39050 | 110 | 500 | 2 | 13140 | 2X450 | 380 | 32 | 19 | |
FNH-42/120 | 42240 | 120 | 550 | 2 | 17440 | 2X600 | 380 | 32 | 19 | |
FNH-48/135 | 47799 | 135 | 550 | 2 | 17440 | 2X600 | 380 | 32 | 19 | |
FNH-55/155 | 55025 | 155 | 600 | 2 | 21640 | 2X780 | 380 | 32 | 22 | |
FNH-60/170 | 59500 | 170 | 600 | 2 | 21640 | 2X780 | 380 | 32 | 22 |

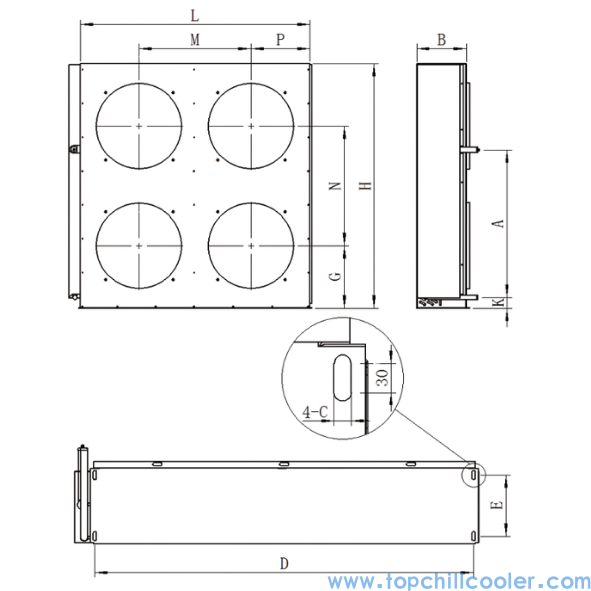

型号规格 | 铜管 copper tubes | 外形尺寸 Dimension | 安装尺寸 | 接口尺寸 | 风扇排列尺寸 | |||||||
Model Specifications | Mounting dimensions | Coupling dimensions | Dimensions of fan arrangement | |||||||||
排数X环数row number number of rings | L | B | H | D | E | C | A | K | G | O | M | |
N×W | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
FNH-0.7/2 | 2×4 | 250 | 120 | 240 | 275 | 70 | 9 | 200 | 24 | 115 | 125 | |
FNH-1.2/3.4 | 3×4 | 250 | 120 | 240 | 275 | 70 | 9 | 200 | 24 | 115 | 125 | |
FNH-1.4/4.0 | 3×4.5 | 300 | 120 | 255 | 290 | 90 | 7 | 225 | 24 | 128 | 150 | |
FNH-1.6/4.4 | 3×5 | 325 | 120 | 280 | 350 | 70 | 7 | 250 | 24 | 140 | 162 | |
FNH-1.9/5.2 | 3×6 | 370 | 130 | 340 | 370 | 100 | 7 | 290 | 25 | 170 | 185 | |
FNH-2.9/8 | 4×6 | 370 | 150 | 340 | 370 | 120 | 9 | 290 | 25 | 170 | 185 | |
FNH-3.0/8.4 | 3×6 | 450 | 170 | 350 | 475 | 120 | 9 | 275 | 44 | 175 | 225 | |
FNH-3.8/10.6 | 4×6 | 450 | 170 | 350 | 475 | 120 | 9 | 275 | 44 | 175 | 225 | |
FNH-3.6/10 | 3×8 | 450 | 170 | 420 | 475 | 120 | 9 | 375 | 30 | 210 | 225 | |
FNH-4.3/12 | 4×8 | 440 | 180 | 420 | 430 | 130 | 9 | 320 | 50 | 210 | 220 | |
FNH-5.4/15 | 4×9 | 490 | 180 | 470 | 480 | 130 | 9 | 370 | 50 | 235 | 245 | |
FNH-6.4/18 | 4×10 | 530 | 180 | 520 | 520 | 130 | 11 | 420 | 50 | 260 | 265 | |
FNH-7.9/22A | 5×10 | 530 | 200 | 520 | 520 | 150 | 11 | 420 | 50 | 260 | 265 | |
FNH-10/27 | 6×9 | 590 | 240 | 470 | 580 | 190 | 11 | 425 | 35 | 340 | 295 | |
FNH-7.9/22B | 4×8 | 810 | 180 | 420 | 800 | 130 | 11 | 320 | 50 | 210 | 210 | 390 |
FNH-10/28 | 4×9 | 890 | 180 | 470 | 880 | 130 | 11 | 420 | 50 | 260 | 230 | 430 |
FNH-12/33 | 4×10 | 940 | 180 | 520 | 930 | 130 | 11 | 420 | 50 | 260 | 245 | 450 |
FNH-15/42 | 5×10 | 940 | 200 | 520 | 930 | 150 | 11 | 420 | 50 | 260 | 245 | 450 |
FNH-19/52 | 5×12 | 940 | 200 | 620 | 930 | 150 | 11 | 500 | 50 | 310 | 245 | 450 |
FNH-21/60 | 5×12 | 1160 | 240 | 620 | 1150 | 170 | 11 | 500 | 50 | 310 | 300 | 560 |
FNH-25/70 | 4×14 | 1160 | 240 | 720 | 1150 | 190 | 11 | 500 | 50 | 360 | 300 | 560 |
FNH-28/80 | 4×16 | 1160 | 240 | 820 | 1150 | 190 | 11 | 500 | 50 | 410 | 300 | 560 |
FNH-35/100 | 4×17 | 1350 | 260 | 870 | 1340 | 210 | 11 | 500 | 50 | 435 | 345 | 660 |
FNH-39/110 | 4×18 | 1350 | 260 | 920 | 1340 | 210 | 11 | 500 | 50 | 460 | 345 | 660 |
FNH-42/120 | 4×20 | 1350 | 260 | 1020 | 1340 | 210 | 11 | 500 | 50 | 510 | 345 | 660 |
FNH-48/135 | 5×18 | 1350 | 260 | 920 | 1340 | 210 | 11 | 500 | 50 | 460 | 345 | 660 |
FNH-55/155 | 5×20 | 1400 | 300 | 1020 | 1390 | 250 | 11 | 500 | 50 | 510 | 360 | 680 |
FNH-60/170 | 5×22 | 1400 | 300 | 1120 | 1390 | 250 | 11 | 500 | 50 | 560 | 360 | 680 |
