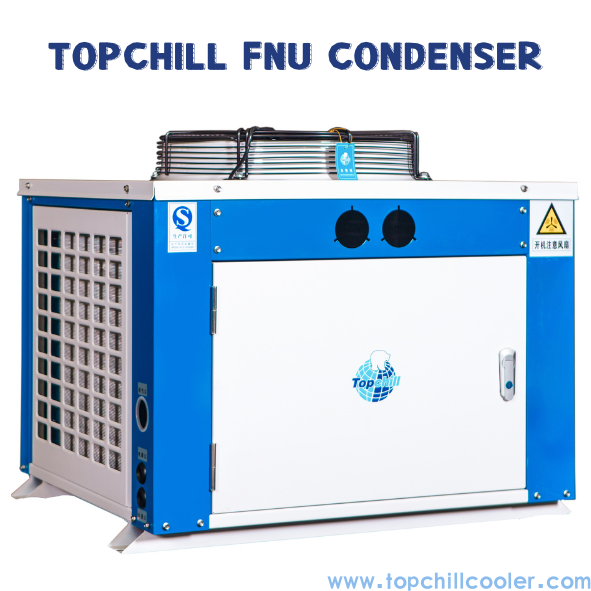

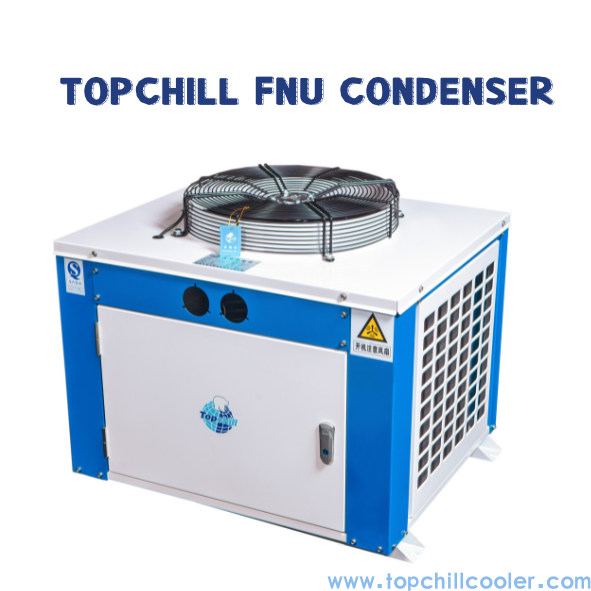

Topchill Air-cooled Condenser FNU Heat Exchanger
Topchill Air-cooled Condenser FNH Heat Exchanger

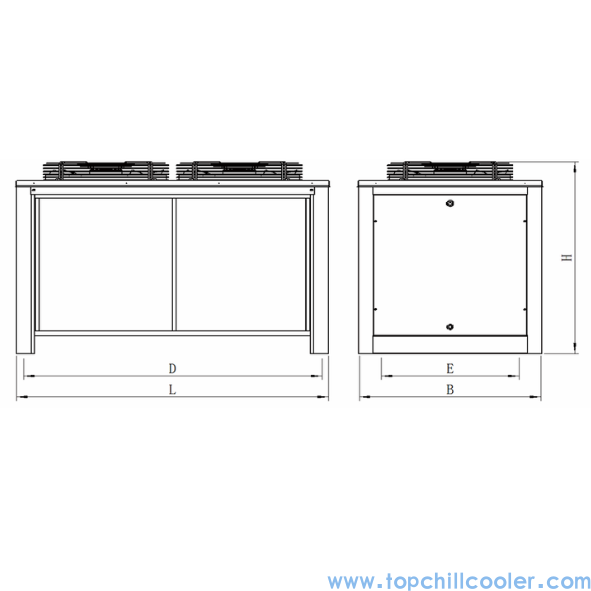

型号规格 | 排热量∆t=15k(kw) | 换热面积 | 风机 Fan | 进气管直径 | 出气管直径Diameter of outler tube | 外形尺寸Dimensions | 安装尺寸Mounting dimension | |||||||
Model Specifications | heat exhaust | Heat removal area | 数量 | 风叶直径 | 风量 | 功率 Power | 电压 | Diameter of inler tube | L | B | H | D | E | |
Quantity | Diameter of fan blade | Air volume | Voltage | |||||||||||
W | ㎡ | N | mm | m³/h | W | V | mm | mm | mm | mm | mm | mm | mm | |
FNU-10/28 | 9968 | 28 | 1 | 4D450 | 5000 | 290 | 380 | 19 | 14 | 870 | 670 | 690 | 510 | 840 |
FNU-12/33 | 11880 | 33 | 1 | 4D450 | 5000 | 290 | 380 | 19 | 14 | 870 | 670 | 690 | 510 | 840 |
FNU-15/42 | 15036 | 42 | 1 | 4D450 | 6570 | 380 | 380 | 19 | 16 | 920 | 770 | 690 | 610 | 890 |
FNU-18/50 | 17950 | 50 | 1 | 4D500 | 8720 | 600 | 380 | 22 | 16 | 900 | 770 | 900 | 610 | 870 |
FNU-21/60 | 31360 | 60 | 1 | 4D550 | 8720 | 600 | 380 | 22 | 16 | 900 | 770 | 900 | 610 | 870 |
FNU-25/70 | 24640 | 70 | 1 | 4D550 | 8720 | 600 | 380 | 22 | 16 | 900 | 770 | 1000 | 610 | 840 |
FNU-28/80 | 28240 | 80 | 2 | 4D450 | 2×5000 | 2×290 | 380 | 22 | 16 | 1330 | 850 | 890 | 900 | 820 |
FNU-31/90 | 30500 | 90 | 2 | 4D500 | 2×6570 | 2×380 | 380 | 22 | 16 | 1300 | 950 | 890 | 900 | 920 |
FNU-35/100 | 35400 | 100 | 2 | 4D500 | 2×6570 | 2×380 | 380 | 22 | 16 | 1330 | 950 | 990 | 900 | 920 |
FNU-39/110 | 39050 | 110 | 2 | 4D500 | 2×6570 | 2×380 | 380 | 22 | 16 | 1480 | 950 | 990 | 900 | 920 |
FNU-42/120 | 42240 | 120 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 25 | 19 | 1730 | 1050 | 1000 | 1300 | 1020 |
FNU-46/130 | 46028 | 130 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 25 | 19 | 1730 | 1050 | 1000 | 1300 | 1020 |
FNU-50/150 | 50109 | 150 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 25 | 19 | 1730 | 1050 | 1000 | 1300 | 1020 |
1. Energy-Efficient Performance
AI-optimized heat exchange design reduces energy consumption by 30%, certified by ISO 50001 standards.
2. Military-Grade Durability

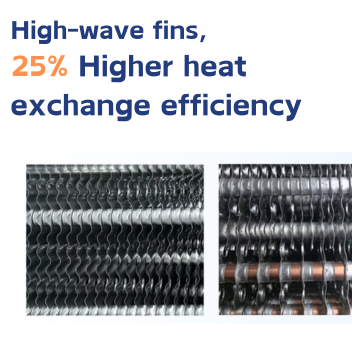

Aerospace-grade aluminum fins with nano-coating withstand salt spray (ASTM B117) and extreme temperatures (-40°C to 80°C).
3. Smart IoT Integration
Real-time performance monitoring via mobile app, predicting maintenance needs with 95% accuracy.
4. Ultra-Low Maintenance

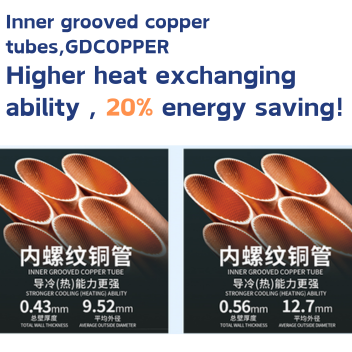

Corrosion-resistant 316L stainless steel tubes ensure 10+ years service life, cutting maintenance costs by 45%.
5. Adaptive Multi-Scene Operation
Patented variable-speed fans automatically adjust to ambient humidity (20-95% RH) and load demands.
6. Whisper-Quiet Technology
Noise levels as low as 55 dB(A) – ideal for urban commercial buildings and hospitals.
7. Global Compliance & Support
CE, UL, and ASHRAE certified. Backed by 10-year warranty and 24/7 technical support across 30+ countries.
