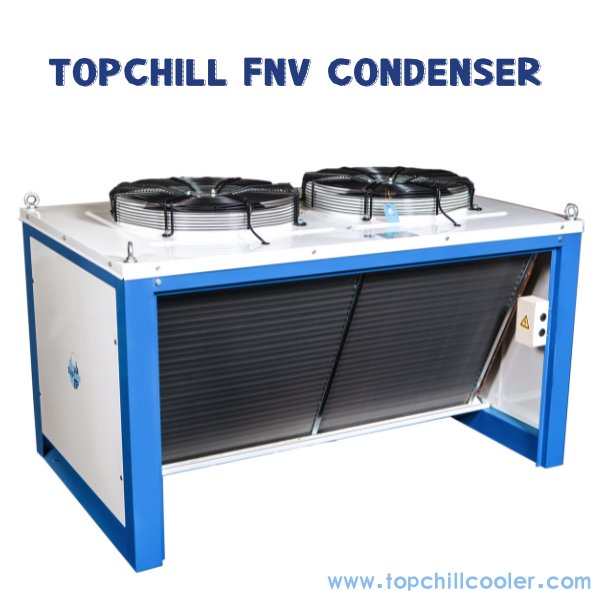

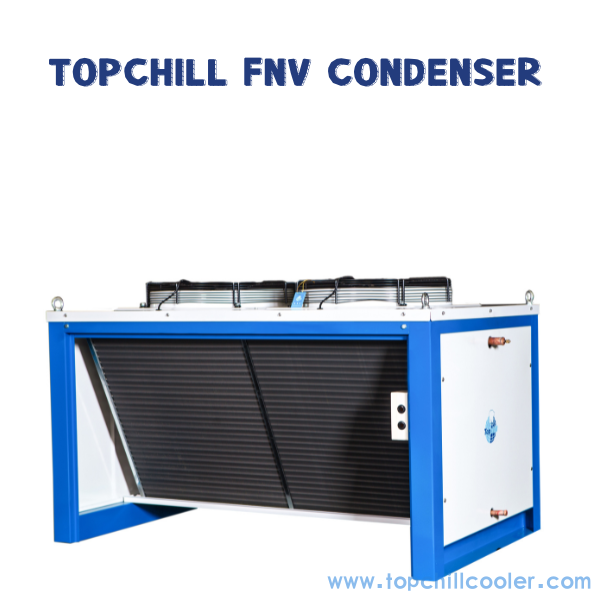

Topchill Air-cooled Condenser FNV Heat Exchanger
Topchill Air-cooled Condenser FNH Heat Exchanger
型号规格 | 排热量∆t=15k(kw) | 换热面积 | 风机 Fan | 进气管直径 | 出气管直径Diameter of outler tube | 外形尺寸Dimensions | 安装尺寸Mounting dimension | |||||||
Model Specifications | heat exhaust | Heat removal area | 数量 | 风叶直径 | 风量 | 功率 Power | 电压 | Diameter of inler tube | L | B | H | D | E | |
Quantity | Diameter of fan blade | Air volume | Voltage | |||||||||||
W | ㎡ | N | mm | m³/h | W | V | mm | mm | mm | mm | mm | mm | mm | |
FNV-25/72 | 24840 | 72 | 1 | 4D550 | 8720 | 600 | 380 | 22 | 16 | 950 | 900 | 880 | 870 | 650 |
FNV-30/87 | 30102 | 87 | 1 | 4D600 | 10820 | 780 | 380 | 25 | 16 | 1100 | 1000 | 860 | 1020 | 750 |
FNV-39/110 | 39050 | 110 | 2 | 4D500 | 2×6570 | 2×450 | 380 | 25 | 16 | 1400 | 900 | 880 | 1320 | 650 |
FNV-45/130 | 44850 | 130 | 2 | 4D550 | 2×8720 | 2×600 | 380 | 28 | 19 | 1550 | 900 | 880 | 1470 | 650 |
FNV-55/155 | 55025 | 155 | 2 | 4D600 | 2×8720 | 2×600 | 380 | 28 | 19 | 1600 | 1000 | 980 | 1520 | 750 |
FNV-64/185 | 63825 | 185 | 2 | 4D630 | 2×10820 | 2×780 | 380 | 28 | 22 | 1700 | 1000 | 1080 | 1620 | 750 |
FNV-73/210 | 72660 | 210 | 2 | 4D630 | 2×12200 | 2×800 | 380 | 32 | 22 | 1750 | 1000 | 1180 | 1670 | 750 |
FNV-83/240 | 82800 | 240 | 2 | Φ700 | 2×15000 | 2×750 | 380 | 32 | 22 | 1900 | 1175 | 1260 | 1820 | 925 |
FNV-104/300 | 103800 | 300 | 2 | Φ750 | 2×19000 | 2×1100 | 380 | 35 | 25 | 2250 | 1175 | 1260 | 2170 | 925 |
FNV-111/320 | 111040 | 320 | 2 | Φ750 | 2×19000 | 2×1100 | 380 | 38 | 25 | 2350 | 1175 | 1260 | 2270 | 925 |
FNV-125/360 | 124560 | 360 | 3 | Φ650 | 3×13200 | 3×550 | 380 | 42 | 28 | 2650 | 1175 | 1260 | 2570 | 925 |
FNV-138/400 | 138400 | 400 | 3 | Φ700 | 3×15000 | 3×750 | 380 | 42 | 28 | 2950 | 1175 | 1260 | 2870 | 925 |
FNV-166/480 | 165600 | 480 | 3 | Φ750 | 3×19000 | 3×1100 | 380 | 54 | 28 | 3400 | 1175 | 1260 | 3320 | 925 |
1. Energy-Efficient Performance
AI-optimized heat exchange design reduces energy consumption by 30%, certified by ISO 50001 standards.
2. Military-Grade Durability
Aerospace-grade aluminum fins with nano-coating withstand salt spray (ASTM B117) and extreme temperatures (-40°C to 80°C).
3. Smart IoT Integration
Real-time performance monitoring via mobile app, predicting maintenance needs with 95% accuracy.
4. Ultra-Low Maintenance
Corrosion-resistant 316L stainless steel tubes ensure 10+ years service life, cutting maintenance costs by 45%.
5. Adaptive Multi-Scene Operation
Patented variable-speed fans automatically adjust to ambient humidity (20-95% RH) and load demands.
6. Whisper-Quiet Technology
Noise levels as low as 55 dB(A) – ideal for urban commercial buildings and hospitals.
7. Global Compliance & Support
CE, UL, and ASHRAE certified. Backed by 10-year warranty and 24/7 technical support across 30+ countries.
