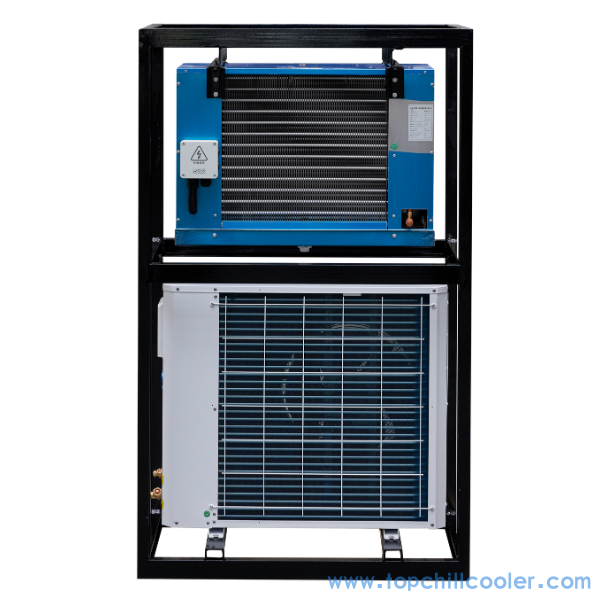

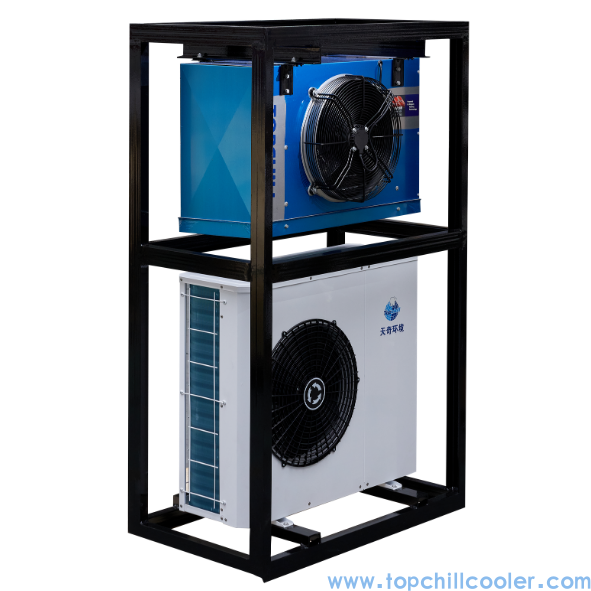

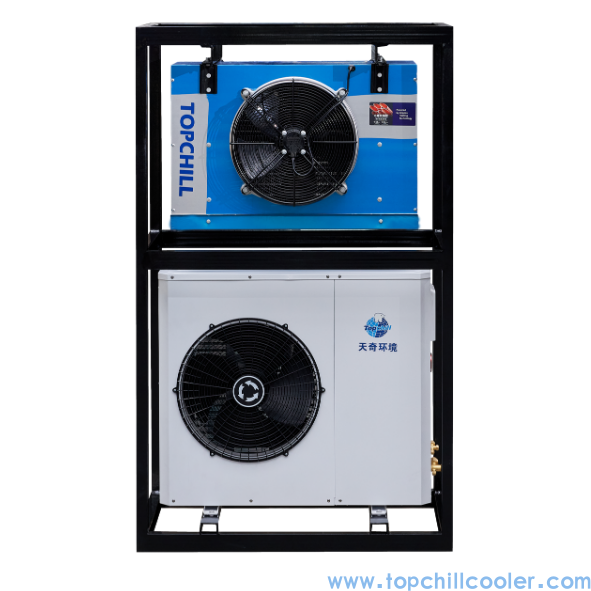

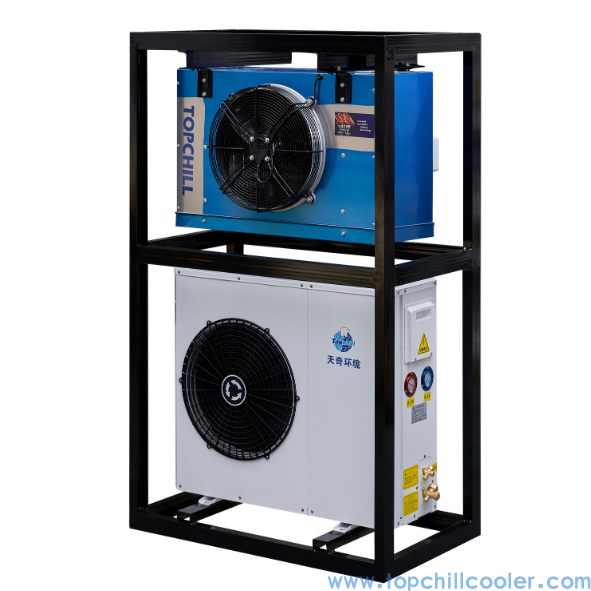

Topchill l box type condensing unit copeland scroll compressor zf low temperature
| L-Serial box type Topchill condensing unit R404a-Copeland scroll compressor ZF | |||||
| 规格参数表 Specification | |||||
| 额定值马力 Rated Horsepower | HP | 4 | 5 | 6 | |
| 电力供应 Power Supply | Volt/Ph/Hz | 380/3/50 | |||
| 性能 Performance | 蒸发温度/冷凝温度 ET/AT | ℃ | -25/50 | ||
| 制冷量 Cooling Capacity | kw | 3.02 | 3.73 | 4.33 | |
| 性能系数 COP | COP | ||||
| 压缩机 Compressor | 压缩机型号 Model | Copeland | ZF13KQE | ZF15KQE | ZF18KQE |
| 压缩机类型 Compressor type | 全封闭涡旋压缩机 Hermetic scroll compressor Copeland ZB serial | ||||
| 额定电流 RLA | A | 7.1 | 8.6 | 8.9 | |
| 堵转电流 LRA | A | 51.5 | 64 | 74 | |
| 充油量 Oil Recharge | L | 1.9 | 1.9 | 1.9 | |
| 风机参数 Fan Motor | 风机数量 Number of Fan | PCS | 1 | 2 | 2 |
| 风机转速 Fan Speed | rpm | 860 | |||
| 风机风量 Air Flow | m3/h | 2400 | 2x2400 | 2x2400 | |
| 风机电流 Fan motor Current | A | 0.68 | |||
| 电压 Power supply | Volt/Ph/Hz | 380/3/50 | |||
| 接口尺寸 Connection Size | 吸气口管径 Suction diameter | in | 3/4" | ||
| 供液口管径 Liquid supply diameter | in | 1/2" | |||
| 外型尺寸 Dimension | 高 Height | mm | 830 | 1240 | 1240 |
| 长 Length | mm | 950 | 950 | 950 | |
| 宽 Width | mm | 355 | 355 | 355 | |
| 重量 Weight | kg | 81 | 105 | 108 | |
| 制冷量表 Performance Data R404A 220V/1PH/50HZ | |||||||||||||
| 型号 Model | 制冷量(kw) Cooling Capacity | 冷凝温度(°C) Condensation Temperature | 蒸发温度(℃) Evaporation Temperature | ||||||||||
| -40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 | 7 | |||
| ZF13KQE TFD | Q | 30 | 2.45 | 3.15 | 3.98 | 4.93 | 6.03 | 7.3 | 8.74 | 10.36 | 12.19 | 14.24 | 15.12 |
| 40 | 2.19 | 2.78 | 3.48 | 4.31 | 5.27 | 6.38 | 7.66 | 9.11 | 10.76 | 12.61 | 13.41 | ||
| 50 | 1.94 | 2.4 | 2.95 | 3.62 | 4.42 | 5.35 | 6.44 | 7.7 | 9.13 | 10.77 | 11.48 | ||
| P | 30 | 1.87 | 1.93 | 2 | 2.08 | 2.19 | 2.3 | 2.44 | 2.59 | 2.76 | 2.95 | 3.03 | |
| 40 | 2.27 | 2.33 | 2.41 | 2.49 | 2.59 | 2.7 | 2.83 | 2.97 | 3.13 | 3.3 | 3.37 | ||
| 50 | 2.78 | 2.85 | 2.93 | 3.02 | 3.12 | 3.23 | 3.35 | 3.48 | 3.62 | 3.78 | 3.85 | ||
| ZF15KQE TFD | Q | 30 | 3.01 | 3.89 | 4.91 | 6.08 | 7.44 | 9.01 | 10.82 | 12.89 | 15.26 | 17.93 | 19.1 |
| 40 | 2.66 | 3.42 | 4.29 | 5.3 | 6.47 | 7.84 | 9.43 | 11.26 | 13.36 | 15.76 | 16.81 | ||
| 50 | 2.36 | 2.95 | 3.64 | 4.44 | 5.4 | 6.53 | 7.86 | 9.41 | 11.22 | 13.31 | 14.22 | ||
| P | 30 | 2.21 | 2.33 | 2.45 | 2.58 | 2.73 | 2.9 | 3.09 | 3.31 | 3.56 | 3.85 | 3.97 | |
| 40 | 2.68 | 2.82 | 2.95 | 3.09 | 3.24 | 3.41 | 3.6 | 3.8 | 4.04 | 4.3 | 4.41 | ||
| 50 | 3.26 | 3.42 | 3.58 | 3.73 | 3.9 | 4.07 | 4.25 | 4.45 | 4.67 | 4.92 | 5.02 | ||
| ZF18KQE TFD | Q | 30 | 3.7 | 4.7 | 5.85 | 7.2 | 8.78 | 10.64 | 12.81 | 15.33 | 18.25 | 21.58 | 23.04 |
| 40 | 3.29 | 4.17 | 5.17 | 6.34 | 7.7 | 9.3 | 11.17 | 13.36 | 15.91 | 18.84 | 20.13 | ||
| 50 | 2.81 | 3.57 | 4.41 | 5.37 | 6.5 | 7.83 | 9.4 | 11.25 | 13.42 | 15.94 | 17.06 | ||
| P | 30 | 2.79 | 2.89 | 3.01 | 3.14 | 3.29 | 3.46 | 3.65 | 3.85 | 4.07 | 4.3 | 4.4 | |
| 40 | 3.29 | 3.4 | 3.53 | 3.67 | 3.83 | 4 | 4.18 | 4.38 | 4.59 | 4.82 | 4.91 | ||
| 50 | 3.92 | 4.04 | 4.18 | 4.33 | 4.49 | 4.67 | 4.85 | 5.05 | 5.26 | 5.48 | 5.57 | ||
