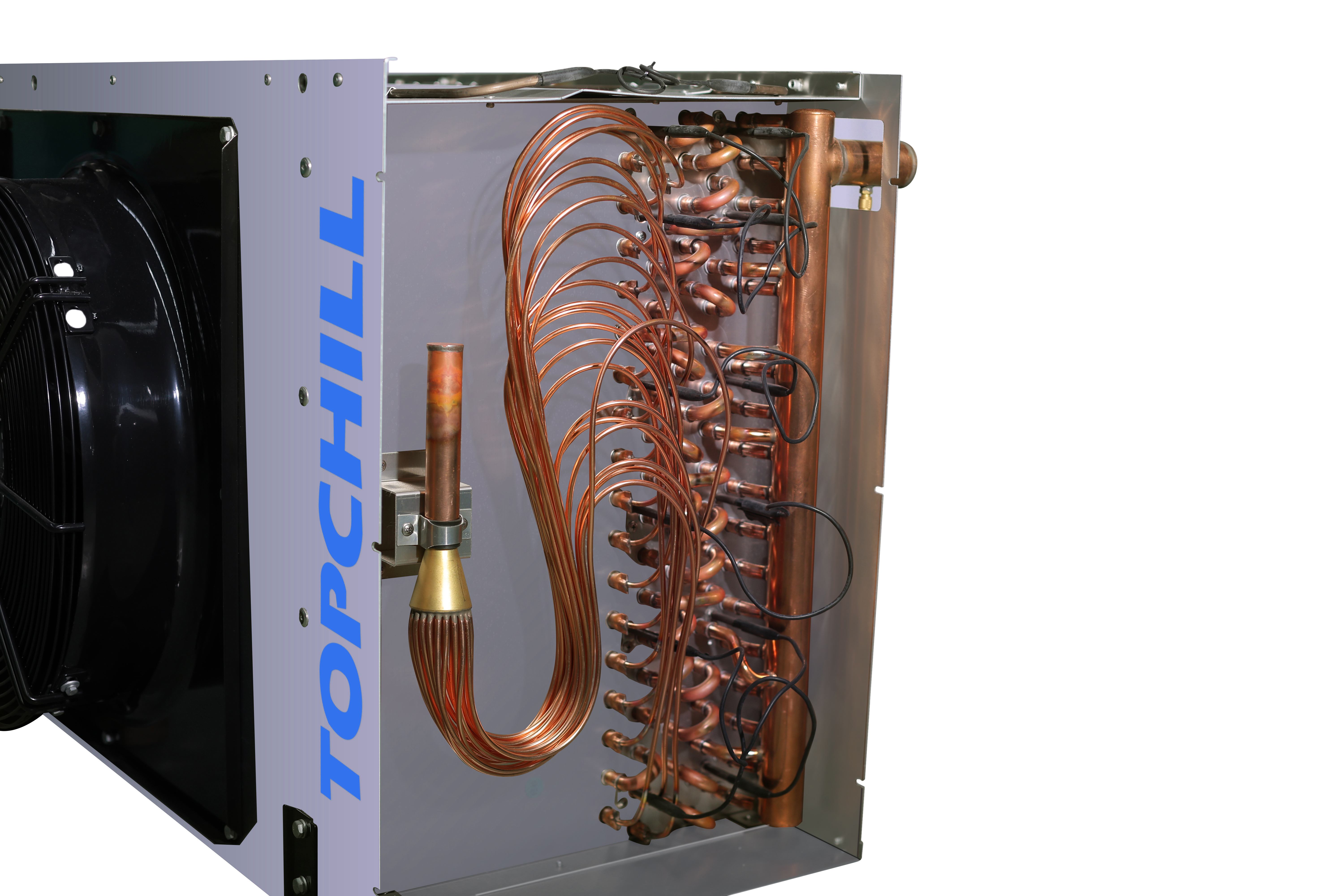

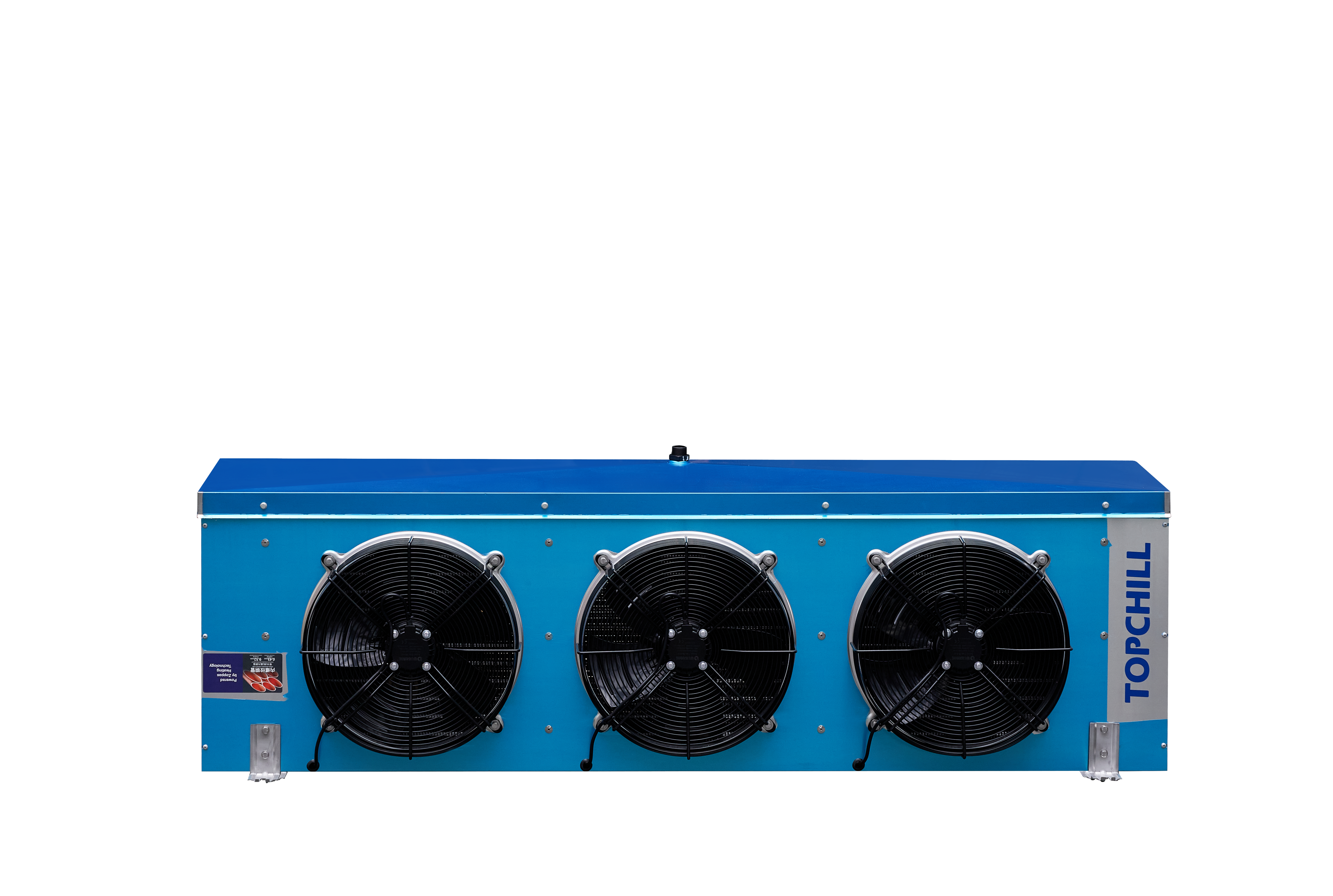

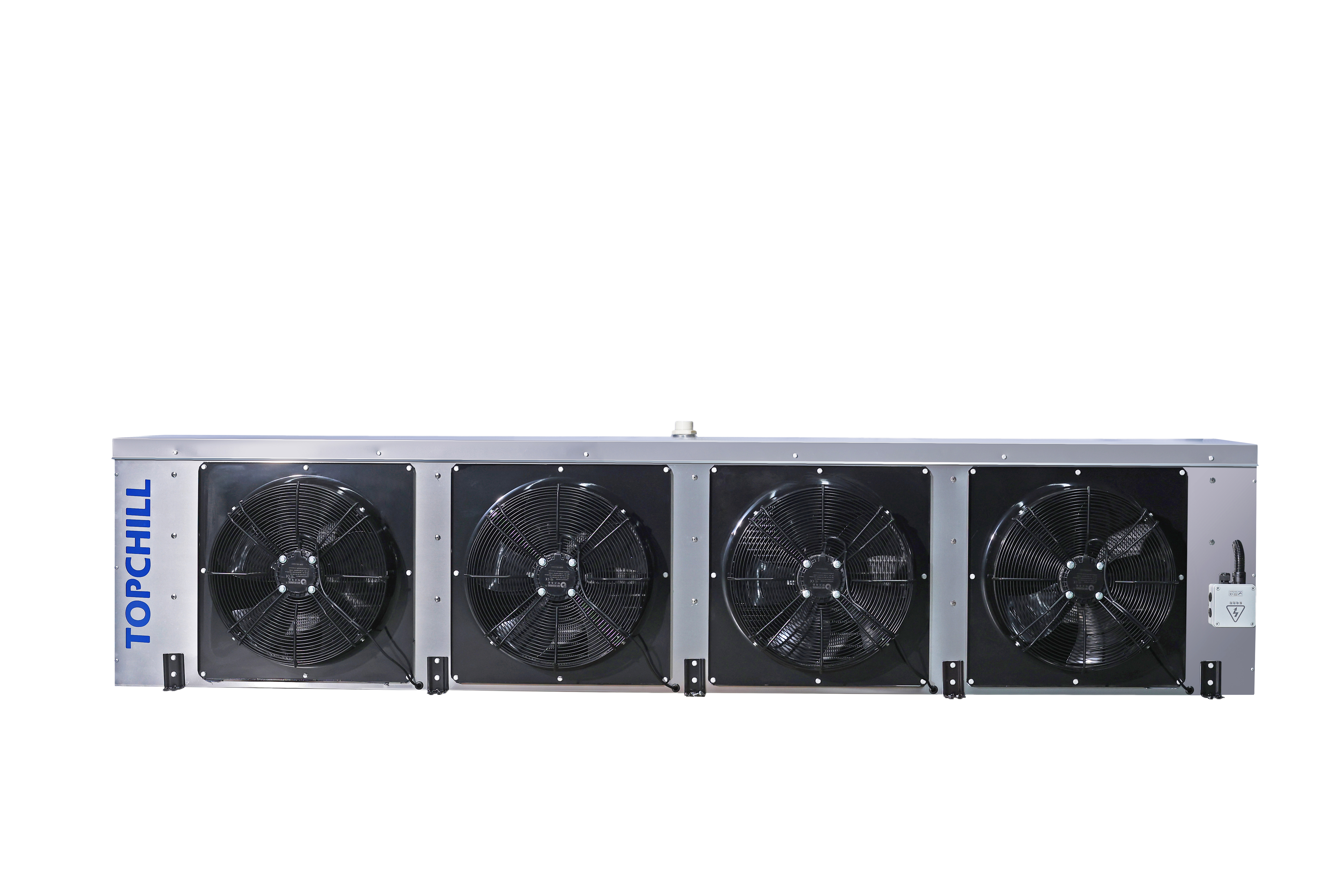

Topchill Refrigeration Air Cooler Commercial Freeze Air Cooled Heat Exchanger Medium Temperature Application TCM
commercial refrigeration air cooler (mid temp.) 6mm Medium-temperature fin space 6mm
高效型商用中小型冷风机技术参数(中温型) commercial refrigeration air cooler (mid temp.) 中温片距:6mm Medium-temperature fin space 6mm | ||||||||||||||
型号 Model | 制冷量 Capacity KW | 管容积 Pipe Vol | 风机参数 Fan data | 融霜电加热 Electric Defrost | 接口规格mm Diameter mm | 外形尺寸 BxTxH External dimensions | 重量 Weight | |||||||
SC1 | SC2 | dm³ | 风扇数量x直径 Fan Mot. Nos x φ mm | 功率W Fan Power W | 风量 m³/h Air Flow | 射程m Range | 盘管x支 Defrosting power KW*Qtty | 水盘kwx支 Defrosting power of pan KW *Qtty | 进液管/回气管 Inlet/outlet | 排水英寸 Drain pipe | 长x宽x高mm Length x width x height | 图号 Drawing No | KG | |

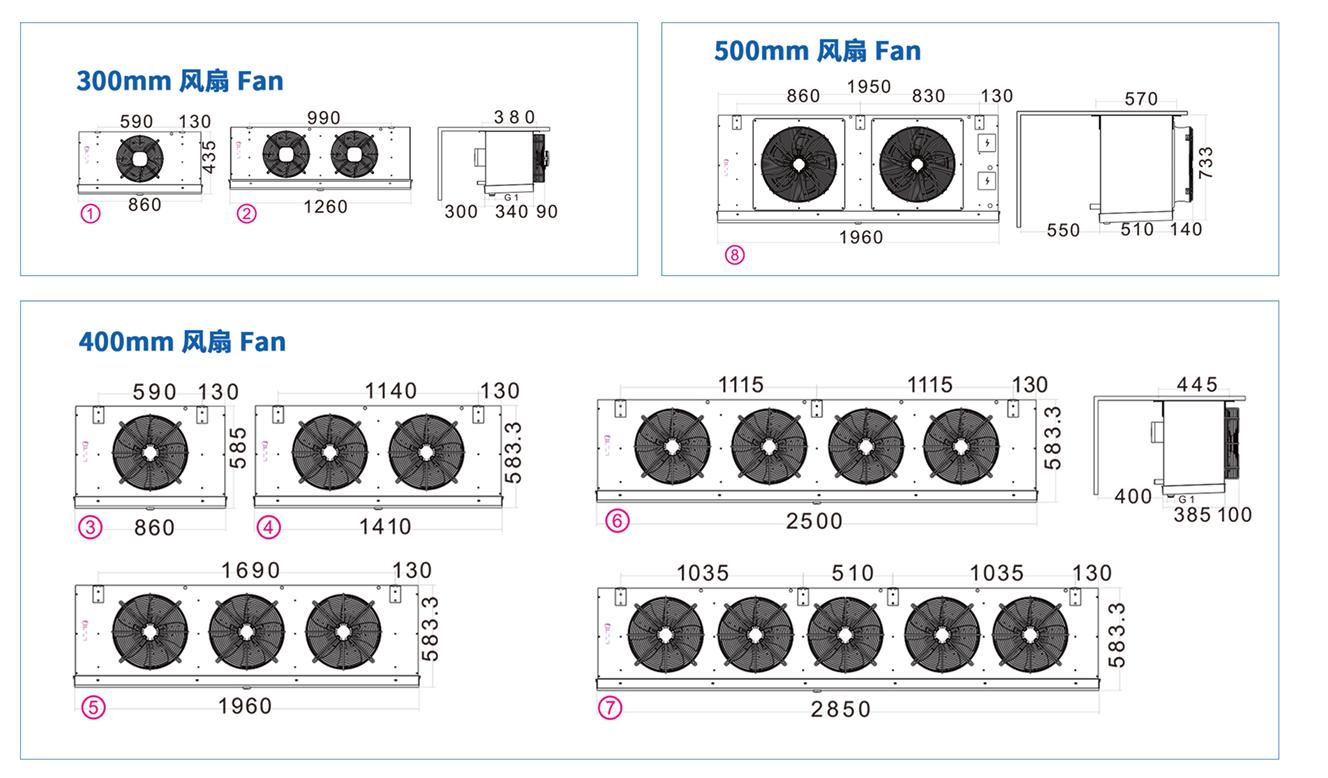

TCM0.9/301E | 1.2 | 0.9 | 0.9 | 1xΦ300 | 1x85 | 1400 | 7 | 0.5x2 | 0.25x1 | Φ12/Φ22 | G1 | 870x450x430 | ① | 19 |
TCM1.6/301E | 2.2 | 1.6 | 1.7 | 1xΦ300 | 1x85 | 1400 | 6 | 0.5x3 | 0.25x1 | Φ12/Φ22 | G1 | 870x450x430 | ① | 21 |
TCM1.8/301E | 2.6 | 1.8 | 2.2 | 1xΦ300 | 1x85 | 1340 | 6 | 0.5x3 | 0.25x1 | Φ12/Φ22 | G1 | 870x450x430 | ① | 22 |
TCM2.1/302E | 3.1 | 2.1 | 2.2 | 2xΦ300 | 2x85 | 2800 | 7 | 0.9x2 | 0.45x1 | Φ12/Φ22 | G1 | 1270x450x430 | ② | 29 |
TCM2.5/401E | 3.6 | 2.5 | 2.4 | 1xΦ400 | 1x205 | 2750 | 10 | 0.5x3 | 0.25x1 | Φ12/Φ22 | G1 | 870x510x570 | ③ | 24 |
TCM3.0/401E | 4.3 | 3 | 3 | 1xΦ400 | 1x205 | 2610 | 10 | 0.5x4 | 0.25x1 | Φ12/Φ22 | G1 | 870x510x570 | ③ | 26 |
TCM4.2/402E | 5.8 | 4.2 | 3.6 | 2xΦ400 | 2x205 | 5900 | 13 | 0.9x3 | 0.45x1 | Φ12/Φ22 | G1 | 1420x510x570 | ④ | 38 |
TCM5.0/402E | 7.2 | 5 | 4.9 | 2xΦ400 | 2x205 | 5500 | 13 | 0.9x3 | 0.45x1 | Φ16/Φ28 | G1 | 1420x510x570 | ④ | 42 |
TCM6.0/402E | 8.6 | 6 | 6.1 | 2xΦ400 | 2x205 | 5220 | 12 | 0.9x4 | 0.45x1 | Φ16/Φ28 | G1 | 1420x510x570 | ④ | 46 |
TCM6.6/402E | 9.6 | 6.6 | 7.3 | 2xΦ400 | 2x205 | 5100 | 12 | 0.9x5 | 0.45x1 | Φ16/Φ28 | G1 | 1420x510x570 | ④ | 50 |
TCM7.1/403E | 10.5 | 7.1 | 7.3 | 3xΦ400 | 3x205 | 8250 | 15 | 1.4x3 | 0.7x1 | Φ16/Φ28 | G1 | 1970x510x570 | ⑤ | 54 |
TCM8.7/403E | 12.7 | 8.7 | 9.1 | 3xΦ400 | 3x205 | 7830 | 15 | 1.4x4 | 0.7x1 | Φ22/Φ28 | G1 | 1970x510x570 | ⑤ | 60 |
TCM9.7/403E | 14.4 | 9.7 | 10.9 | 3xΦ400 | 3x205 | 7650 | 14 | 1.4x5 | 0.7x1 | Φ22/Φ35 | G1 | 1970x510x570 | ⑤ | 66 |
TCM11.9/404E | 17.1 | 11.9 | 12.1 | 4xΦ400 | 4x205 | 10440 | 17 | 1.8x4 | 0.9x1 | Φ22/Φ35 | G1 | 2520x510x570 | ⑥ | 80 |
TCM13.5/404E | 19.6 | 13.5 | 14.6 | 4xΦ400 | 4x205 | 10200 | 17 | 1.8x5 | 0.9x1 | Φ22/Φ35 | G1 | 2520x510x570 | ⑥ | 88 |
TCM15.7/405E | 22.8 | 15.7 | 14.6 | 5xΦ400 | 5x205 | 14500 | 19 | 1.8x5 | 0.9x1 | Φ22/Φ42 | G1 | 2870x510x570 | ⑦ | 100 |
TCM11.7/502E | 17.1 | 11.7 | 11.7 | 2xΦ500 | 2x750 | 12960 | 26 | 1.4x6 | 0.7x1 | Φ22/Φ35 | G1 | 2000x640x740 | ⑧ | 88 |
TCM13.3/502E | 19.5 | 13.3 | 14 | 2xΦ500 | 2x750 | 12260 | 26 | 1.4x6 | 0.7x1 | Φ28/Φ35 | G1 | 2000x640x740 | ⑧ | 96 |
* SC1工况: 蒸发温度 (Evap)0°C , 温差(TD)10K, 进风温度(Air inlet):10°C, 过热度(SH)6.5K, 相对湿度(RH):85% SC2工况: 蒸发温度 (Evap)-8°C , 温差(TD)8K, 进风温度(Air inlet):0°C, 过热度(SH)5.2K, 相对湿度(RH):85% SC3工况: 蒸发温度 (Evap)-25°C ,温差(TD)7K, 进风温度(Air inlet):-18°C, 过热度 (SH)4.6K, 相对湿度(RH):95% | ||||||||||||||
