Topchill Refrigeration Air Cooler Commercial Unit Cooler TAM Medium temperature supermarket
4.0mm High-temperature fin space 4.0mm
COMMERCIAL AIR-COOLED HEAT EXCHANGERS (MEDIUM TEMP.)
SINGLE DISCHARGE UNIT COOLER
高效型斜出风型冷风机技术参数(中温型) 高温片距:4.0mm High-temperature fin space 4.0mm /COMMERCIAL AIR HEAT EXCHANGERS (HIGH TEMP.) | ||||||||||||||
型号 (Models) | 制冷量KW (Capacity) | 管容积(CircuitVol) | 风机参数 (Fan data) | 融霜电加热(ElectricDefrost) | 接口规格(mm) (Take-overdimensions) | 外形尺寸 BxTxH (External dimensions) | 重量 (Weight) | |||||||

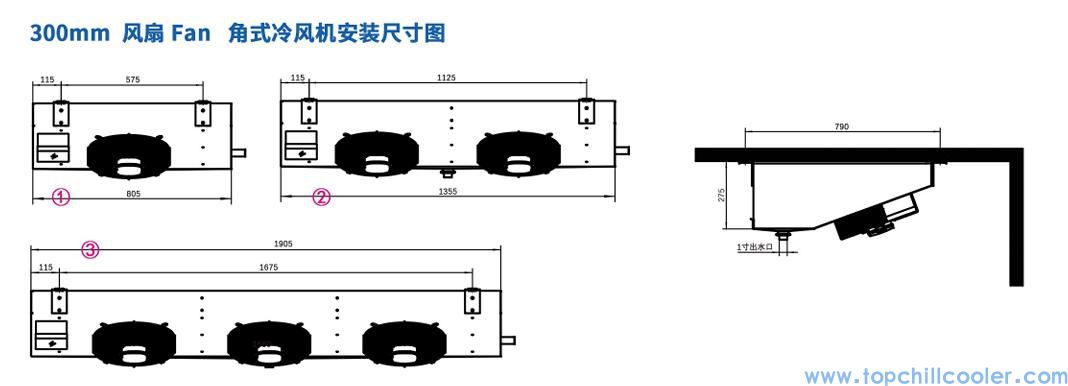

SC2 | SC3 | dm³ | 风叶数量x直径 (Fan Mot.) nxφmm | 功率W (FanPower) | 风量m³/h (Air Flow) | 射程m (Range) | 盘管KWx支 (Defrosting power of fins) | 水盘KWx支 (Defrosting power of pan) | 进液管/回气管 (Inlet/outlet) | 排水(英寸 (Drain pipe) | 长x宽x高(mm) (Length x width x height) | 图号 (Drawing No) | KG | |
TAM1.3/301E | 1.9 | 1.3 | 1.8 | 1xΦ300 | 1x85 | 1260 | 5 | 0.6x2 | 0.3x1 | Φ12/Φ16 | G1 | 805x790x275 | ① | 21 |
TAM1.8/301E | 2.4 | 1.8 | 2.7 | 1xΦ300 | 1x85 | 1115 | 4 | 0.6x2 | 0.3x1 | Φ12/Φ16 | G1 | 805x790x275 | ① | 22 |
TAM2.4/302E | 3.2 | 2.4 | 2.7 | 2xΦ300 | 2x85 | 2730 | 6 | 1.1x2 | 0.5x1 | Φ12/Φ16 | G1 | 1355x790x275 | ② | 33 |
TAM2.6/302E | 3.8 | 2.6 | 3.6 | 2xΦ300 | 2x85 | 2520 | 6 | 1.1x2 | 0.5x1 | Φ12/Φ22 | G1 | 1355x790x275 | ② | 35 |
TAM3.4/302E | 4.8 | 3.4 | 5.4 | 2xΦ300 | 2x85 | 2230 | 5 | 1.1x2 | 0.5x1 | Φ12/Φ22 | G1 | 1355x790x275 | ② | 37 |
TAM4.0/303E | 5.7 | 4 | 5.4 | 3xΦ300 | 3x85 | 3780 | 7 | 1.7x2 | 0.8x1 | Φ12/Φ28 | G1 | 1905x790x275 | ③ | 49 |
TAM4.9/303E | 7.1 | 4.9 | 8.1 | 3xΦ300 | 3x85 | 3345 | 6 | 1.7x2 | 0.8x1 | Φ12/Φ28 | G1 | 1905x790x275 | ③ | 52 |
* SC2工况: 蒸发温度(Evap)-8°C ,温差(TD)8K,进风温度(Air inlet):0°C,过热度(SH)5.2K,相对湿度(RH):85% SC3工况: 蒸发温度(Evap)-25°C ,温差(TD)7K,进风温度(Air inlet):-18°C,过热度(SH)4.6K,相对湿度(RH):95% |
1. Cooler, Smarter, Longer: 35% Energy Savings, Zero Compromise.
(Topchill air cooler of 100% JINGLONG copper tubes makes higher energy efficiency &durability)
2. From Frost to Heatwave – We’ve Got Your Back
Topchill air cooler application temperature range from +5 °C~ -100°C(Cascade System, fulfill your different cold storage demand
3. "IP65 Tough. AI-Smart. Your Cooling Guard 24/7.
"Topchill air cooler of IP66 junction box, safety & more of durability, connect with internet, 24 hours smart monitoring
4. "Chill Your Bills, Not Your Business.
"Focus: Cost savings + ROI Topchill products meet national high energy saving level standard, saving your cost and improve your ROI annually, make your business more profitable
5. "Built for Extremes. Trusted by 3000+ Industries.
"(Topchill refrigeration air cooler worked in extreme ambient temperature, from desert to snow world, always working reliable, getting widely social proof)
6. "Precision Cooling Where 0.5°C Makes All the Difference.
" Topchill focus on R&D more than 10 years, processing tolerance within 0.1mm: Temperature control accuracy within 0.5 °C
7. "10-Year Cool, 24/7 Support –
Topchill promise Topchill promise products longevity design is 10 years +, and 24/7 answer for quality warranty.
